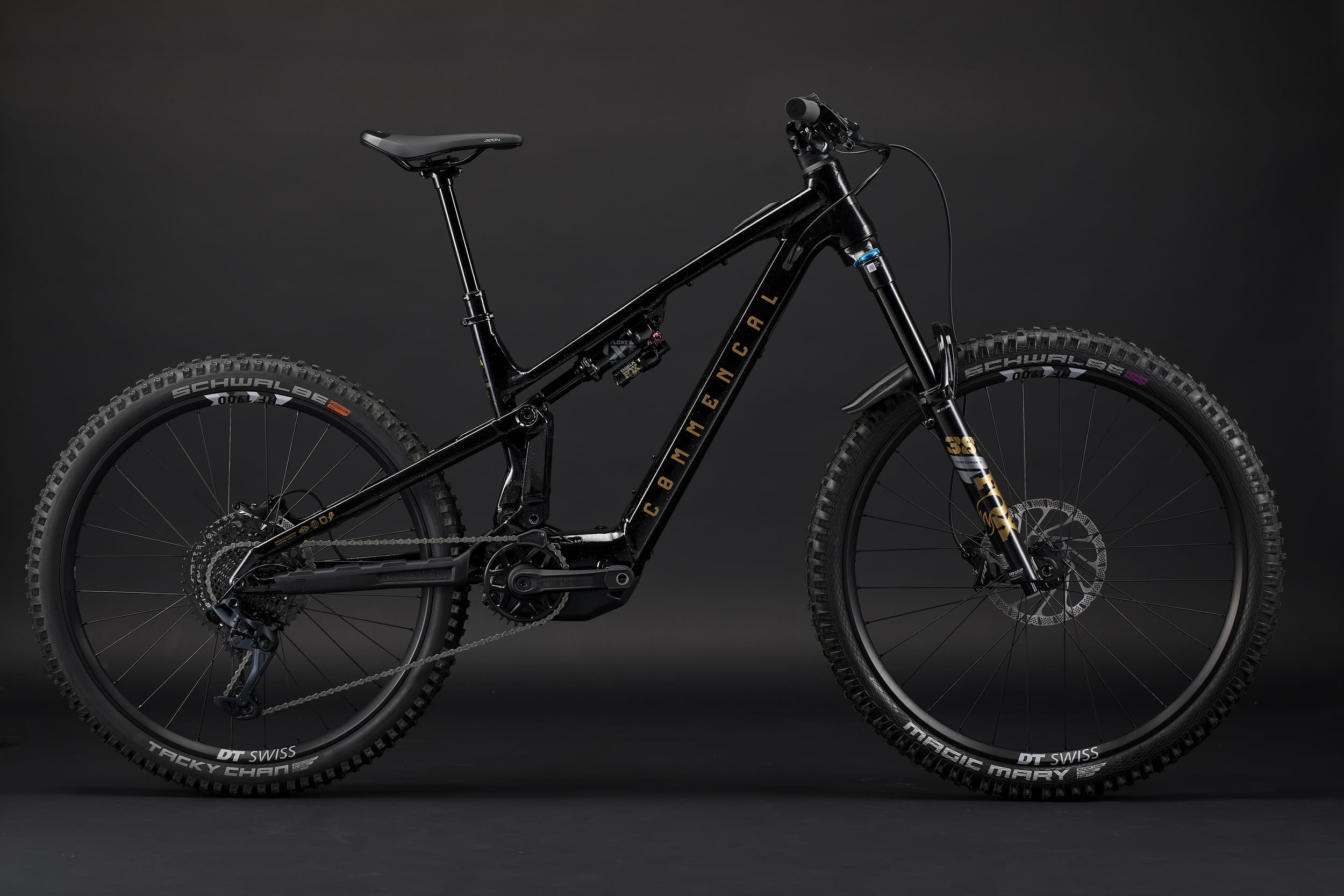

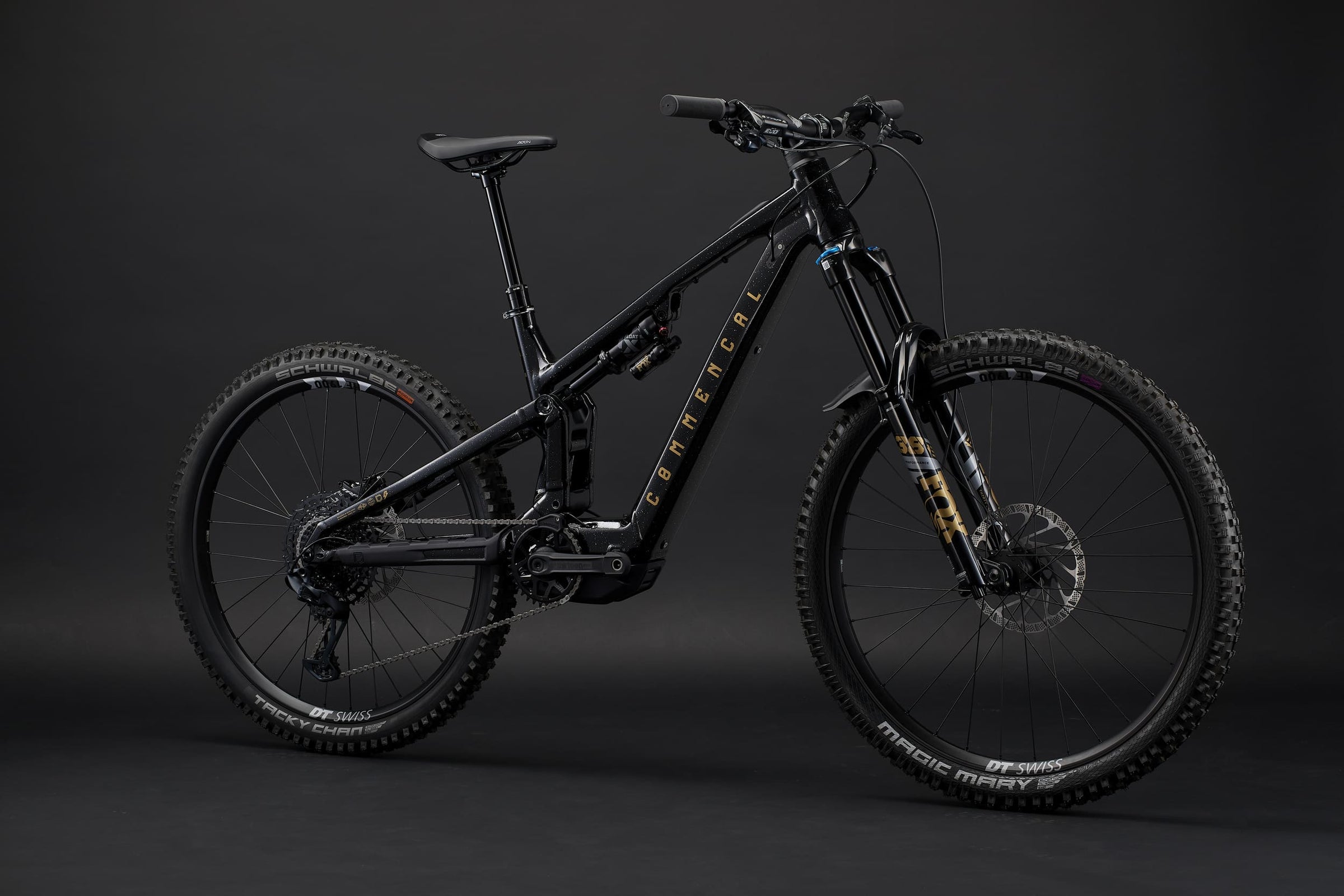

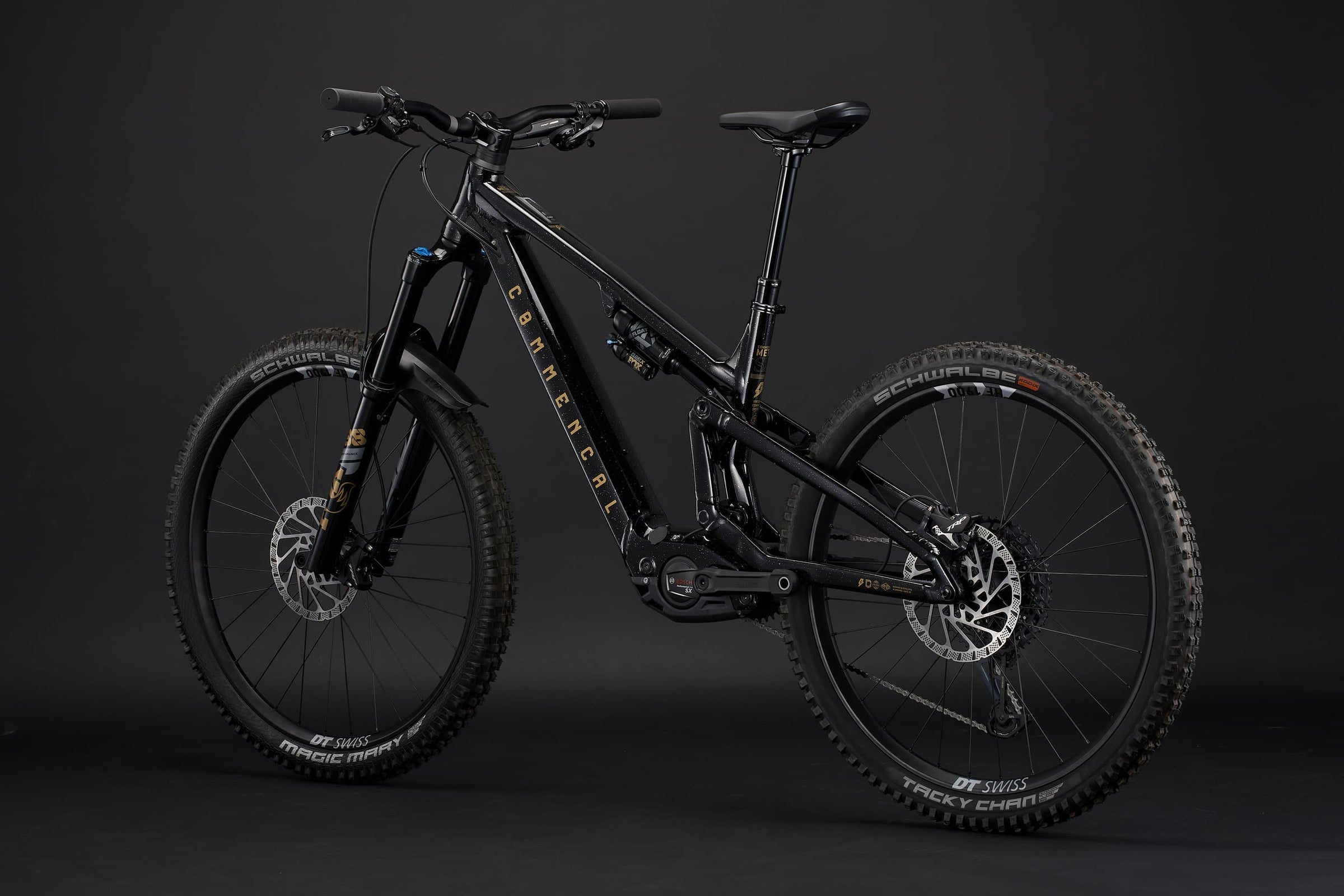

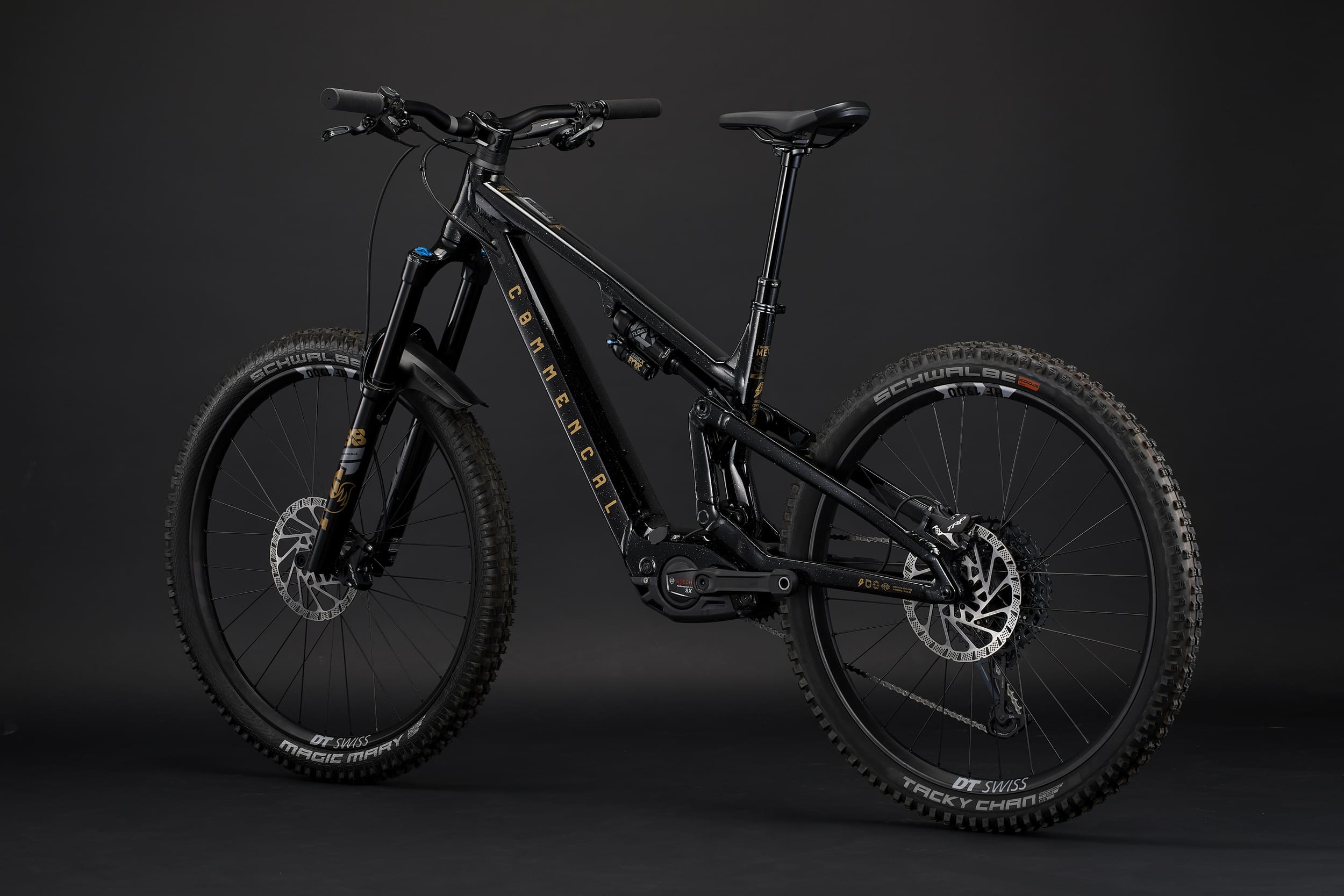

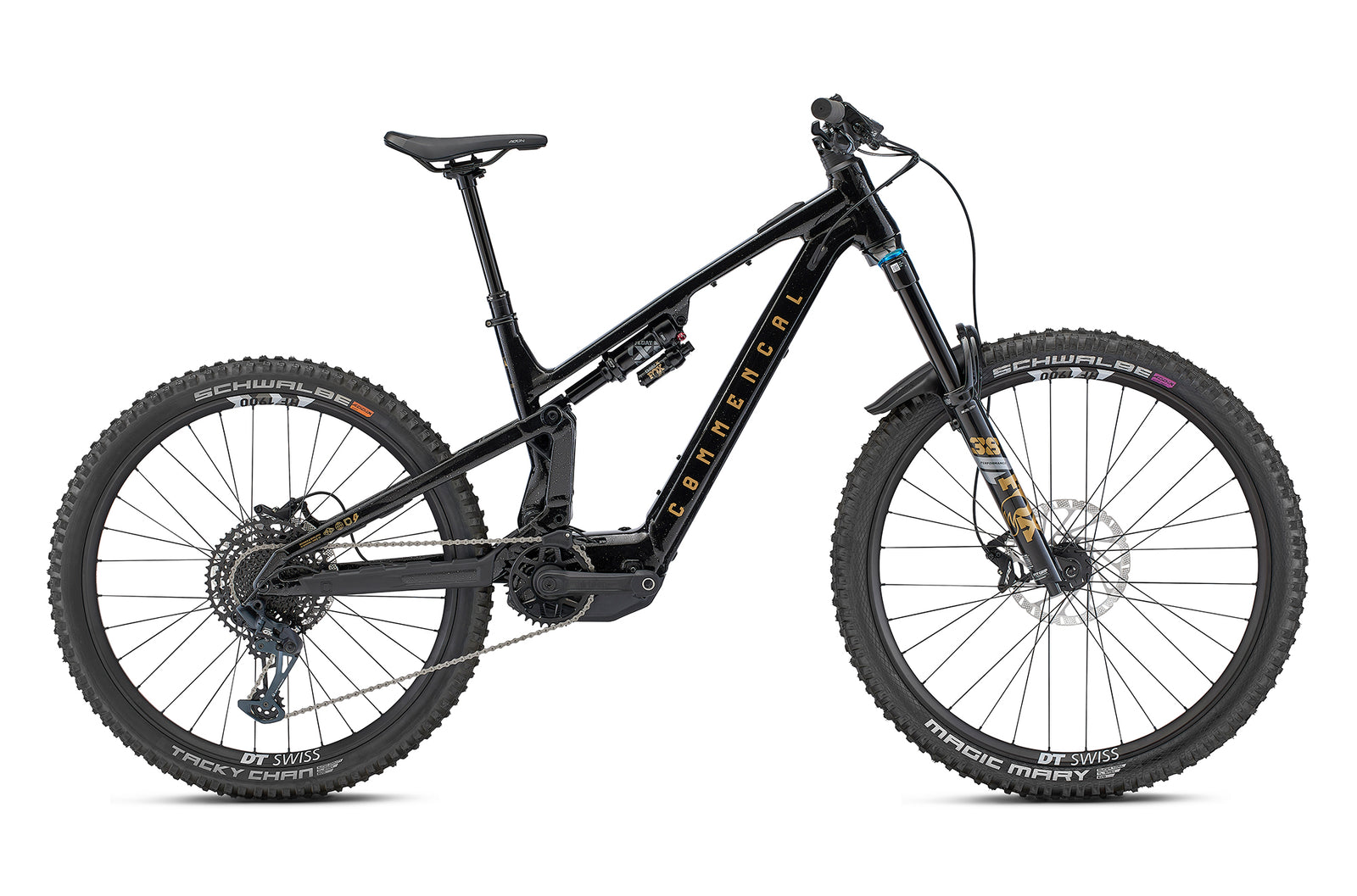

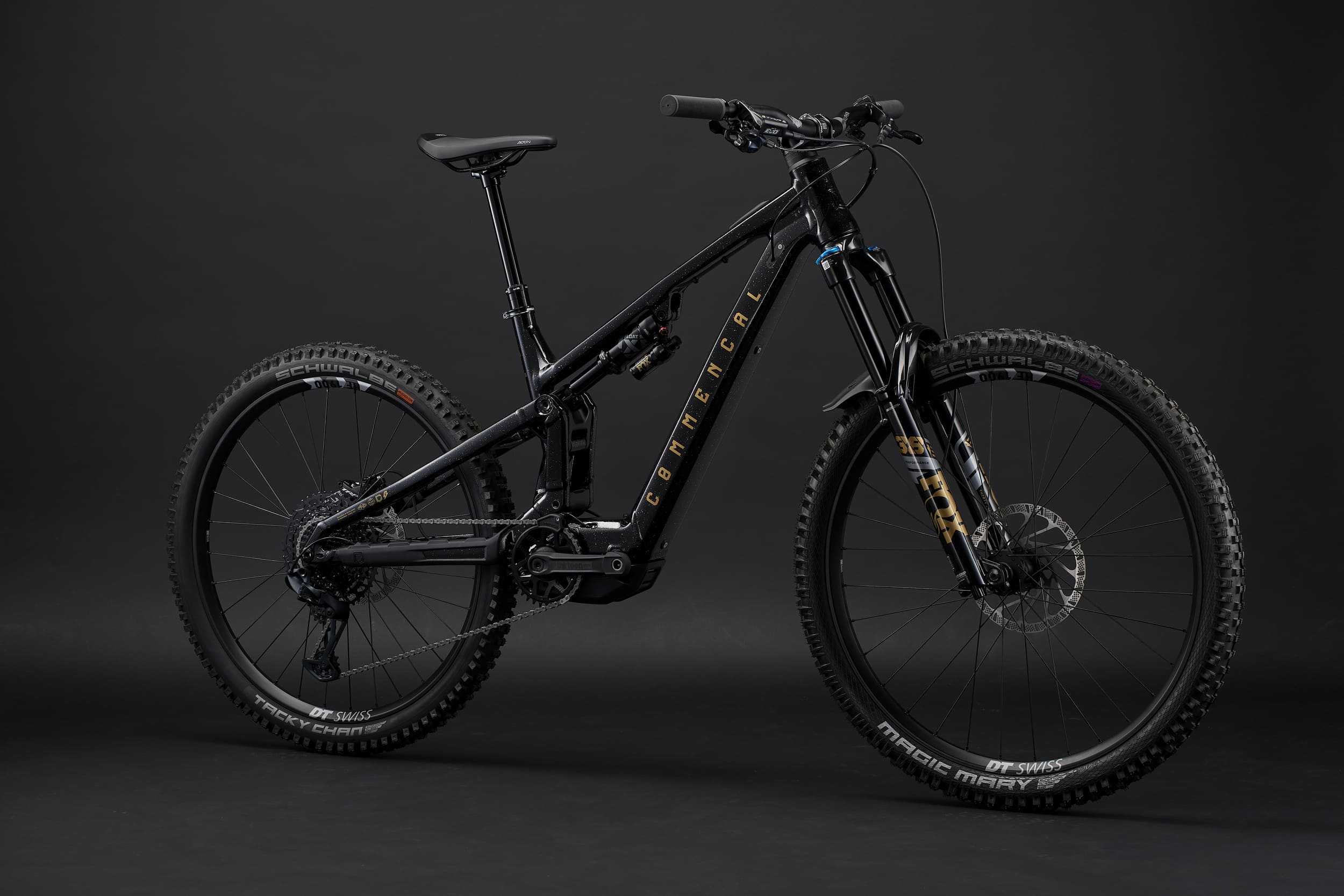

COMMENCAL META POWER SX 400 ESSENTIAL 2025
The META POWER SX 400 brings maximum grip and confidence to tackle any slope. From your favourite DH track to the techiest natural trails, it's the eBike for riders who want the same feeling as riding their DH bike.
$6,500.00
SKU: BT4MSXPWV5EUS1S
Liquid error (sections/product-commencal-main line 185): new_comment form must be given an articleAvailable to order — ships directly from supplier
Size Guide
Select the frame size that best fits your height and riding style.
S: 5'2"–5'7" |
M: 5'6"–5'10" |
L: 5'9"–6'1"
Specifications
Frame
META POWER SX 400, 170 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Bolu BearingsMotor
BOSCH Performance Line SX
Max. torque: 60 N.m, 250 WBattery
BOSCH Compact Powertube 400
Fully integrated main battery, 400 Wh
BOSCH 4A Battery Charger. Compact size & lightweightDisplay

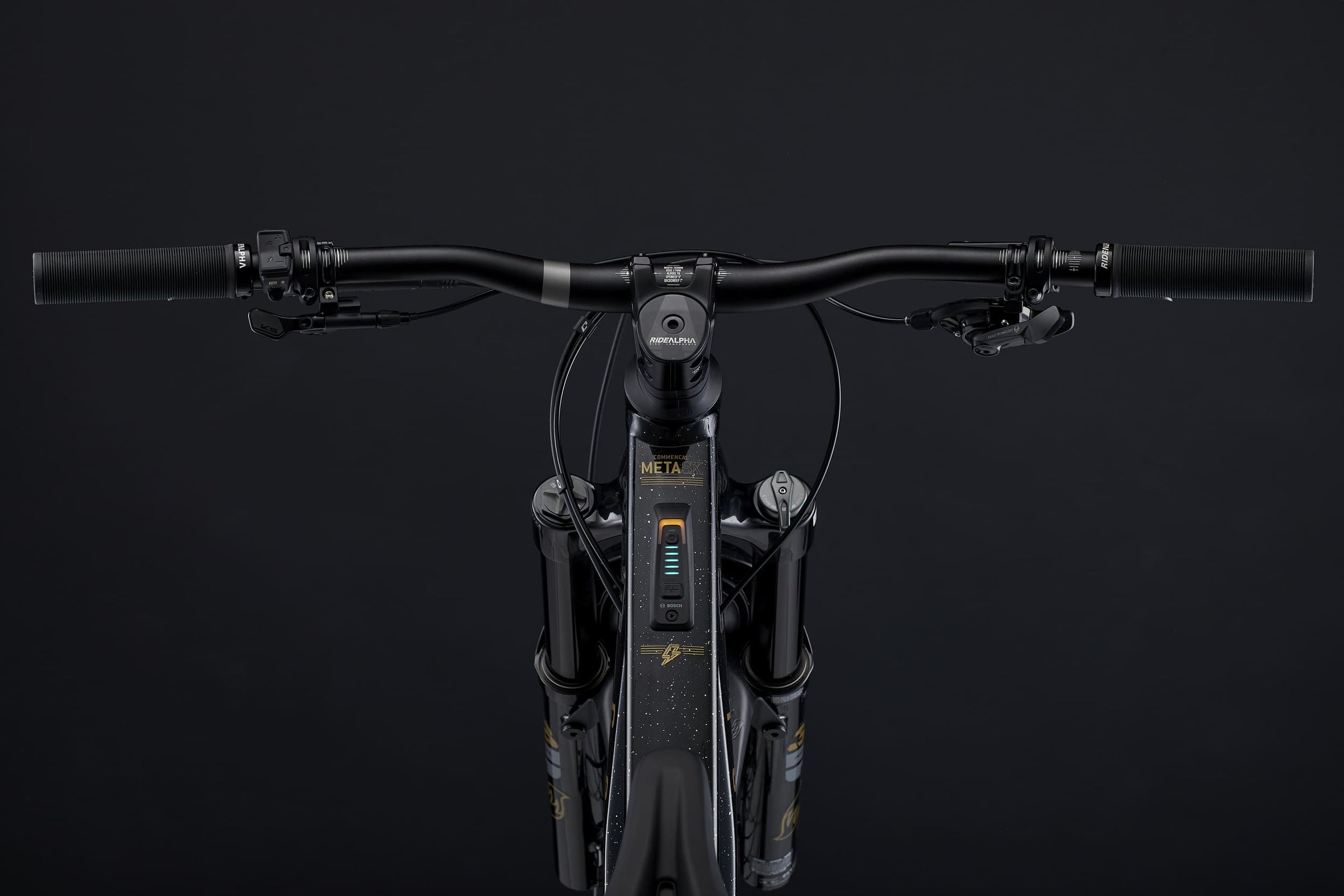

BOSCH System Controller
ON/OFF switch, assist mode level, battery charge levelShock

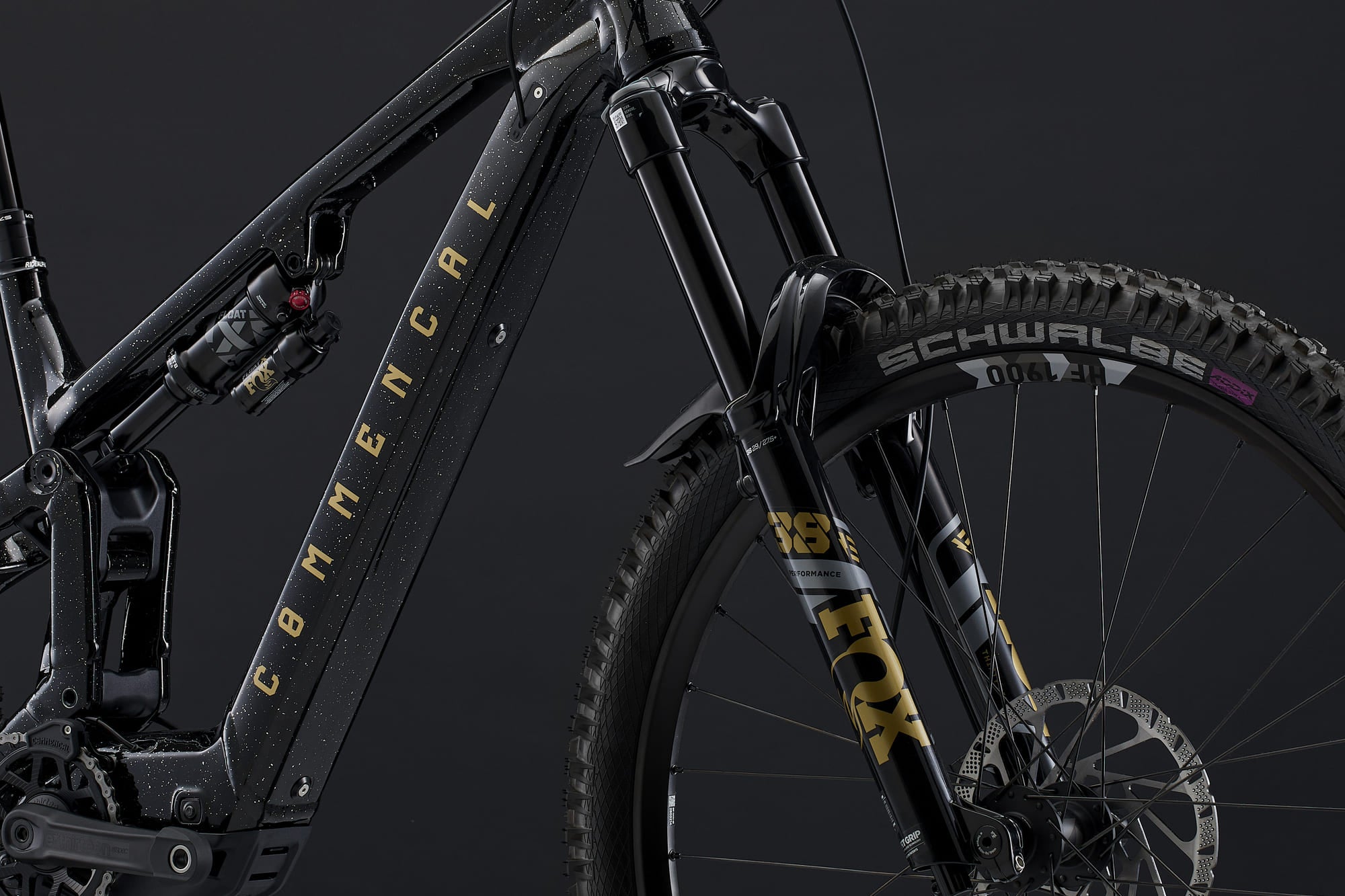

FOX Float X Factory
230 x 65 mm, 2-position (open/firm) lever, LSC, LSR, 0.4 spacersFork
FOX 38 Factory E-Bike, 170 mm
29", Grip X2 damper, HSR, LSR, HSC, LSC, Boost (15 × 110 mm), 44 mm offset, 3 spacersHeadset
ACROS ZS56 / ZS66
Alloy cups, stainless steel & sealed bearingsStem

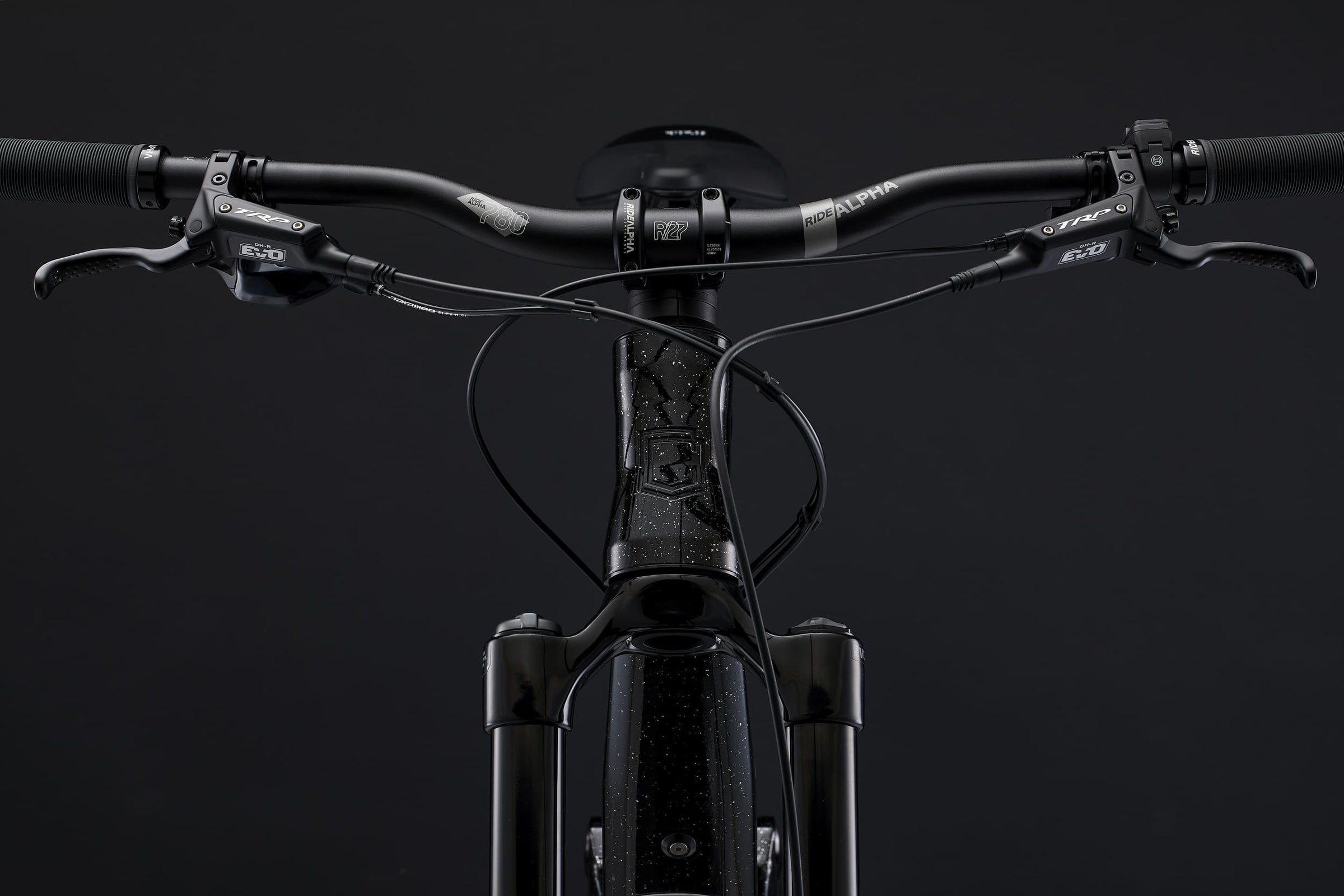

RIDE ALPHA 40
40 mm extension, 31.8 mmHandlebar
RIDE ALPHA R20 760 on S – RIDE ALPHA R27 780 on M/L – RIDE ALPHA R27 800 on XL
31.8 mm, 760–800 mm width, 20–27 mm rise, Alloy 6061Grips
ODI Longneck 2.1
Soft compound, single clamp, blackBrakes
SRAM MAVEN Silver, 4 pistons, steel-backed organic pads
Rotors: SRAM HS2 200 mm, 6-boltShifters
SRAM AXS POD Controller
12 speedChain guide
RIDE ALPHA
32-34 tRear Derailleur

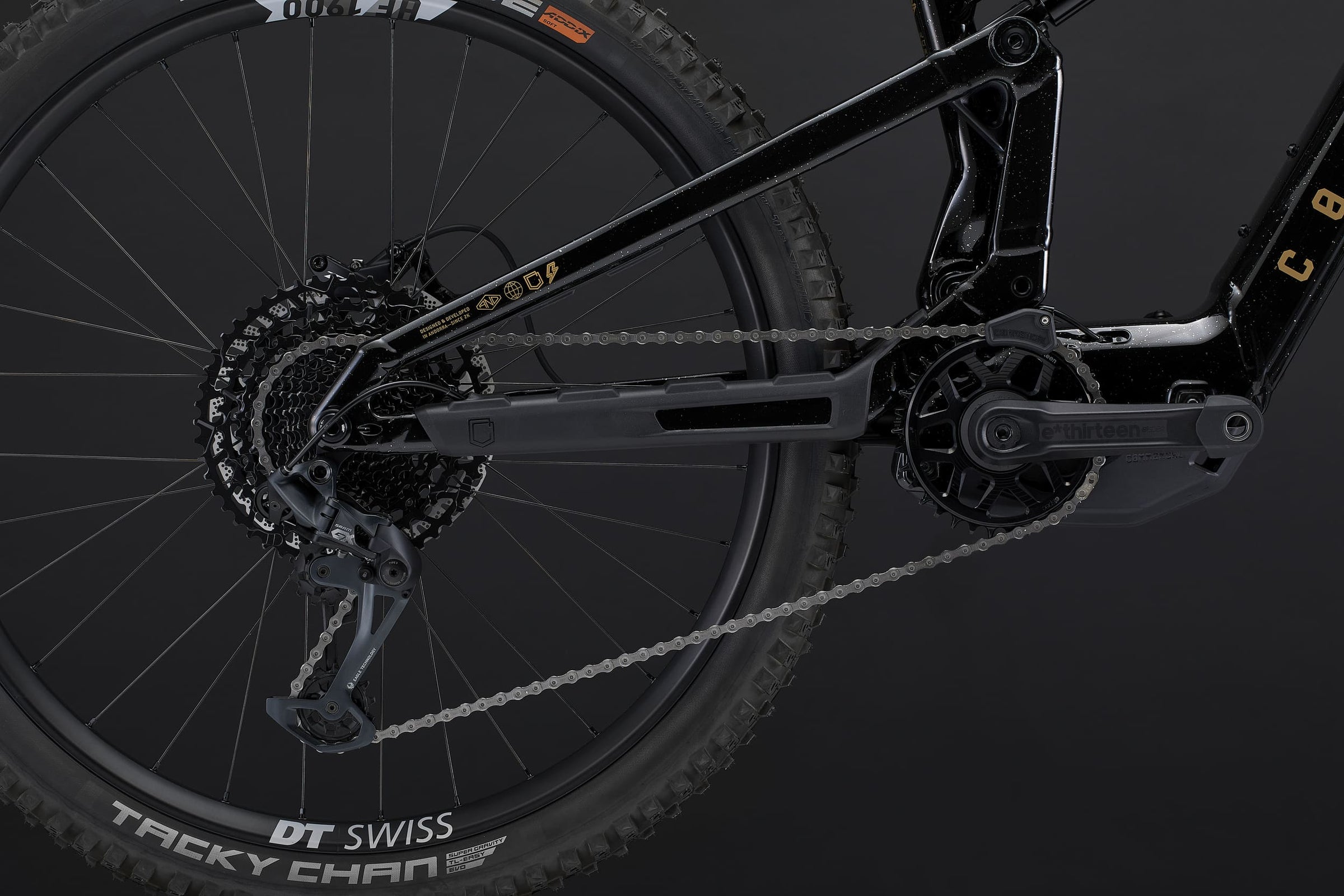

SRAM GX Eagle Transmission
12 s, AXS, T-TypeCrankset
SRAM X0 Eagle E-MTB (Bosch)
155 mm arms, 34 t direct-mount ringChain
SRAM GX Eagle Transmission
12 s, Flattop, T-TypeCassette
SRAM GX Eagle Transmission
12 s, 10-52 t, T-TypeRims
DT SWISS HFR1700 Classic
27.5"/29", 30 mm inner width, 28 hHubs
DT SWISS 350
Sealed bearings, e-bike specificSpokes/Nipples
DT SWISS Hybrid 3
Straight-pull 2.34/2.0 mm, stainless, ProLock, blackTyres
Rear: SCHWALBE Tacky Chan / Front: SCHWALBE Magic Mary
27.5×2.4 Super Gravity & 29×2.4 Super Trail, Tubeless EasySeat post
FOX Transfer Factory
34.9 mm, 150–210 mm travel by sizeSaddle
FIZIK Terra Aidon X5
145 mm, S-Alloy Mobius railsWeight
21.9 kg / 48.3 lbs
Minimum weight (S size), without pedals.Pedals included
CRANKBROTHERS Stamp 1
Colour
Glittery White
Shiny finishAccessories
Down-tube protector, chainstay protector, seatstay protector, FOX 38 fender, FIDLOCK bases, plastic film protector
Bike specifications are subject to change without notice.
Technical Information
-
Bicycle type
E-bike - Enduro / Downhill
-
Frame material
AL 6066 T6
-
Frame weight
4,76 kg / 10,49 lb
-
Rear travel
170mm
-
Shock length/stroke
230x65mm
-
Recommended SAG
27-31% / 17-20mm
-
Piggy back shock compatible
Yes
-
Shock bushings
Included - 20x10mm
-
Recommended/max. fork height
588mm / 598mm
-
Headset type
ZS56 / ZS66
-
ICR compatible
Yes
-
Wheels size
29’’ - 27.5’’
-
Max. rear tyre dimension - ETRTO
65mm - Ø584mm
-
rear brake mounting type
Postmount 200mm
-
Rear brake rotor max. size
223mm
-
Seatpost/seat clamp diameter
34,9mm / 38,5mm
-
Seatpost insertion max.
S : 180mm / M : 220mm / L : 240mm / XL : 260mm
-
Motor Crankarms interface
BOSCH SX
-
Chain guide
Custom upper guide
-
Chain line
55
-
Rear Hub dimension
148x12mm
-
Rear Axle dimension
Maxle standard, 180mm, M12, P1.0mm
-
UDH hanger
yes
META POWER SX 400 or T.E.M.P.O. POWER?
Two bikes, two ways to ride, one philosophy.
The T.E.M.P.O. POWER and META POWER SX 400 are designed to bring the pure thrill of riding to the forefront, with a lightweight build, tailored motorization, and ideal weight distribution. Whether it's trail rides or downhill runs, the choice is yours!
Geometry
SIZE
S
M
L
XL
1 - SEAT TUBE LENGTH
380
420
440
460
2 - SEAT TUBE ANGLE
74,2°
74,2°
74,2°
74,2°
3 - HEAD TUBE ANGLE
64°
64°
64°
64°
4 - HEAD TUBE LENGTH
120
125
130
130
5 - WHEELBASE
1236,9
1259,1
1291,3
1316,3
6 - TOP TUBE LENGTH
580,7
602
628,3
653,3
7 - CHAIN STAY LENGTH
445
445
450
450
8 - BOTTOM BRACKET HEIGHT
-4
-4
-4
-4
9 - FORK LENGTH
588
588
588
588
10 - FORK OFFSET
44
44
44
44
11 - REACH
440
460
485
510
12 - STACK
636,1
640,6
645,1
645,1
All lengths in millimeters.
Size guide
S
M
L
XL
150
155
160
165
170
175
180
185
190
195
200
205
210
215
220
What Size to Choose?
According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.
Between Two Sizes?
When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.
Morphology
Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
