ENDURO
160MM
160MM
29" / 27.5*"
120NM
800WH

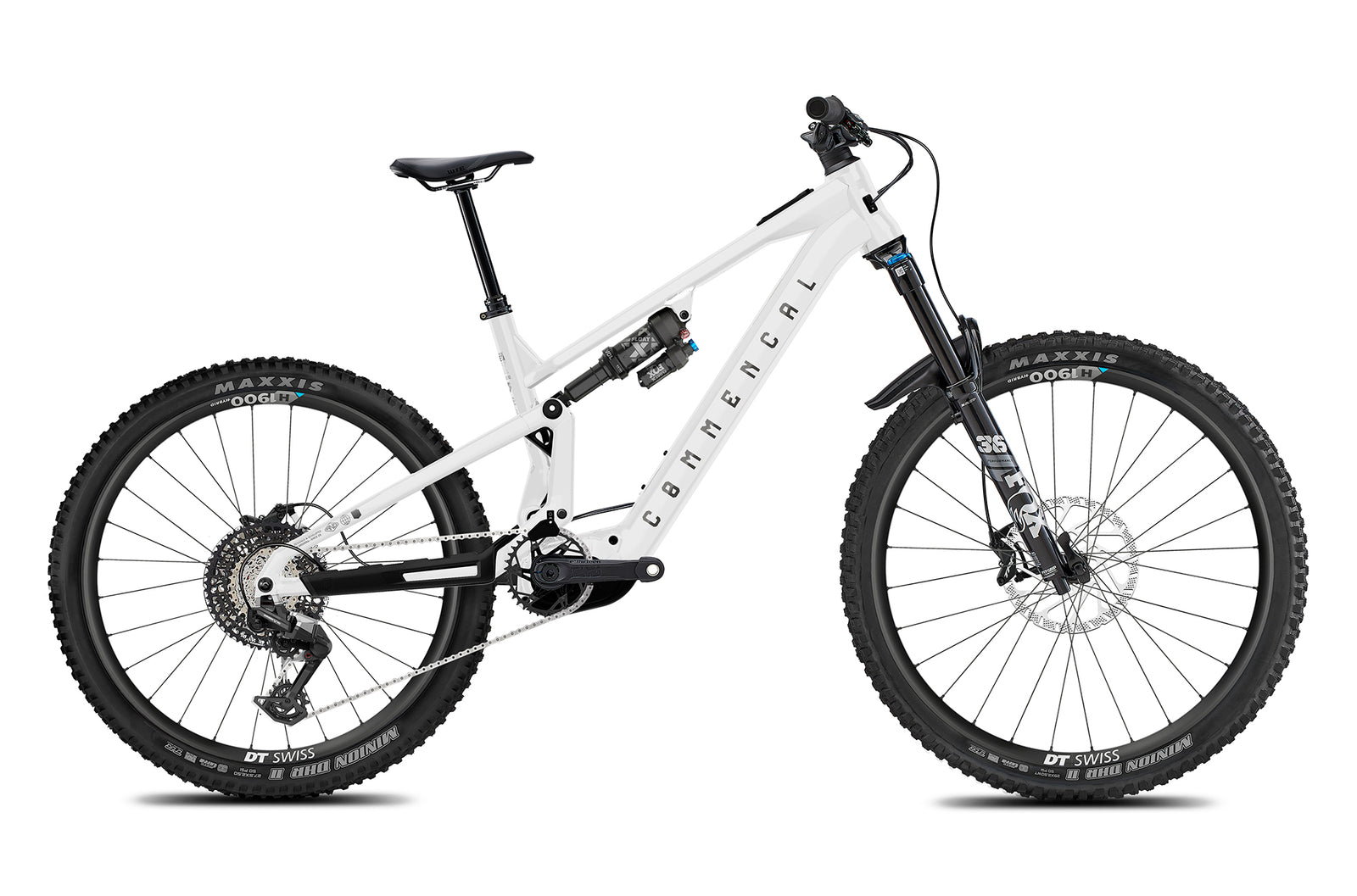

COMMENCAL META POWER SX AVINOX ESSENTIAL PURE WHITE 2026
The COMMENCAL META POWER SX AVINOX ESSENTIAL combines a supportive drive system with a lively chassis and balanced handling. Designed for riders who want longer trail outings with consistent motor assistance, it features 160 mm of rear travel and COMMENCAL’s Virtual Contact System (VCS) linkage for predictable suspension behaviour across varied terrain.
With a 27.5" rear wheel and a compact, well-balanced layout, the bike remains responsive and manoeuvrable, making it easy to place on technical trails. The ESSENTIAL build focuses on practicality and reliability, providing a straightforward entry into the META POWER SX AVINOX platform.
SKU: BT6MSXPWDJEUS1M
Size Guide
Select the frame size that best fits your height and riding style.
S: 5'2"–5'7" |
M: 5'6"–5'10" |
L: 5'9"–6'1"
The COMMENCAL META POWER SX AVINOX ESSENTIAL combines a supportive drive system with a lively chassis and balanced handling. Designed for riders seeking longer trail outings with consistent motor assistance, it features 160 mm of rear travel and COMMENCAL’s Virtual Contact System (VCS) linkage for predictable suspension behaviour across varied terrain.
A 27.5" rear wheel and compact, well-balanced layout help keep the bike responsive and manoeuvrable on technical trails. The ESSENTIAL build focuses on practicality and reliability, offering a straightforward entry point into the META POWER SX AVINOX platform.
Specifications
-
Frame
META POWER SX AVINOX, 160 mm travel
Mixed wheels (29" front / 27.5" rear). Aluminium 6066 with triple-butted tubes, T4/T6 heat treatment. Sealed bearings. -
Motor
AVINOX drive unit
Peak output up to 120 Nm torque and 1,000 W in boost mode; nominal output up to 105 Nm and 850 W, depending on assist mode and conditions. -
Battery
AVINOX integrated battery
600 Wh (S) / 800 Wh (M, L, XL), fully integrated
Charger: AVINOX fast charger (as supplied) -
Display & Controls
AVINOX DP100 touchscreen display
Integrated color display showing ride information such as speed, assist mode, estimated range, and battery level. Additional features such as connectivity, navigation, sensors, and security functions may vary by region and software version.
AVINOX BD100: On/Off switch, assist level selection, battery status
AVINOX BC100 remote: Mode switch, walk assist, light control -
Rear shock
FOX Float X Performance
230 x 60 mm, 2-position lever (Open/Firm), rebound adjustment, volume spacers -
Fork
FOX 36 Performance, 160 mm travel
29", GRIP damper, rebound adjustment, Boost (15 x 110 mm), 44 mm offset -
Headset
ACROS ZS56 / ZS66
Alloy cups, stainless steel sealed bearings -
Stem
RIDE ALPHA 40
40 mm length, 31.8 mm clamp -
Handlebar
RIDE ALPHA handlebars (size-specific)
S: R20, 760 mm width, 20 mm rise, Alloy 6061
M/L: R27, 780 mm width, 27 mm rise, Alloy 6061
XL: R27, 800 mm width, 27 mm rise, Alloy 6061 -
Grips
RIDE ALPHA Mushroom
Soft compound, single clamp, black -
Brakes
TRP DH-R EVO Pro, 4-piston
Rotors: TRP RS06E, 6-bolt, 220 mm (front) / 203 mm (rear) -
Shifter
SRAM Eagle 90
12-speed -
Chain guide
RIDE ALPHA
32–34T compatible -
Rear derailleur
SRAM Eagle 90 T-Type
12-speed -
Crankset
e*thirteen HELIX CORE
155 mm crank arms
Chainring: SRAM T-Type, 34T -
Chain
SRAM GX Eagle T-Type
12-speed, FlatTop -
Cassette
SRAM XS-1270 T-Type
12-speed, 10–52T -
Wheelset
DT SWISS H 1900
Front: 29", 28H, 30 mm internal width
Rear: 27.5", 28H, 30 mm internal width -
Hubs
DT SWISS 370 Hybrid
Front: 28H, sealed bearings, 15 x 110 mm
Rear: 28H, sealed bearings, 12 x 148 mm, HG-compatible -
Spokes / Nipples
DT SWISS Hybrid 1
Straightpull, 2.34 / 2.0 mm double-butted stainless steel, ProLock, black -
Tyres
MAXXIS Minion DHR II
Front: 29 x 2.50 WT, 3C MaxxTerra, EXO+, TR
Rear: 27.5 x 2.50 WT, 3C MaxxTerra, EXO+, TR -
Seatpost
KS Rage-i
31.6 mm diameter
S: 150 mm / M: 175 mm / L–XL: 190 mm -
Saddle
WTB Solano
142 x 240 mm, Medium -
Weight
— kg / — lbs
Minimum weight shown for size S without pedals. Weight may vary due to manufacturing tolerances and component specification changes. -
Pedals included
CRANKBROTHERS Stamp 1
-
Colour
Pure White
Shiny finish -
Accessories
Full RIDEWRAP protective film, motor protector, chainstay protector, seatstay protector, FIDLOCK base, fork fender, CRANKBROTHERS Stamp 1 pedals
Bike specifications are subject to change without notice.
The COMMENCAL META POWER SX AVINOX ESSENTIAL PURE WHITE 2026 includes a manufacturer warranty for the original purchaser against eligible manufacturing defects, in accordance with the terms and conditions provided by the brand.
Technical Information
-
Bicycle type
E-bike - Enduro / Freeride
-
Frame material
AL 6066 T6
-
Frame weight
4,795 kg / 10,57 lb
-
Rear travel
160mm
-
Shock length/stroke
230x60mm
-
Recommended SAG
29-32% / 17,5-19mm
-
Piggy back shock compatible
Yes
-
Shock bushings
20x10mm / no bushing needed on clevis
-
Recommended/max. fork height
576mm / 586mm
-
Headset type
ZS56 / ZS66
-
ICR compatible
Yes
-
Wheels size
29’’ - 27.5’’
-
Max. rear tyre dimension - ETRTO
65mm - Ø584mm
-
rear brake mounting type
Postmount 200mm
-
Rear brake rotor max. size
223mm
-
Seatpost/seat clamp diameter
34,9mm / 38,5mm
-
Seatpost insertion max.
S : 180mm / M : 220mm / L : 240mm / XL : 260mm
-
Motor Crankarms interface
AVINOX
-
Chain guide
Custom upper guide
-
Chain line
55
-
Rear Hub dimension
148x12mm
-
Rear Axle dimension
Maxle standard, 180mm, M12, P1.0mm
-
UDH hanger
yes
Geometry
All lengths in millimeters.
Size guide
What Size to Choose?
According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.
Between Two Sizes?
When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.
Morphology
Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
