ENDURO
160MM
160MM
29" / 27.5*"
120NM
800WH

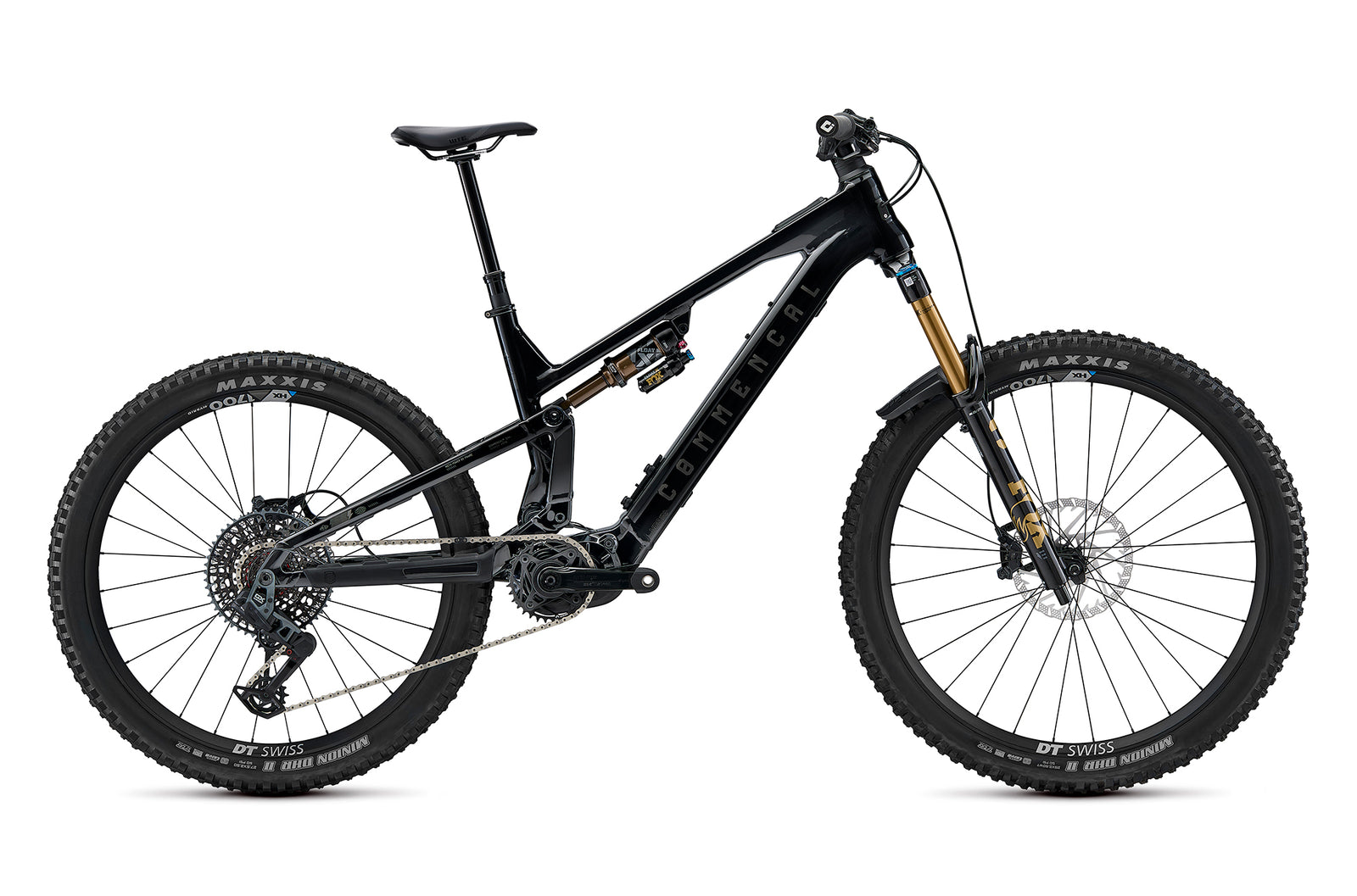

COMMENCAL META POWER SX AVINOX SIGNATURE PURE BLACK 2026
The META POWER SX AVINOX Signature pairs a supportive Avinox drive system with a lively, balanced 160 mm chassis for riders who prioritize control, consistency, and longer trail days.
Its Virtual Contact System (VCS) suspension delivers predictable performance across mixed terrain, while the mixed-wheel setup and refined weight distribution keep the bike responsive and easy to place on technical trails.
Finished in Signature Pure Black, this build focuses on clean aesthetics and all-round trail capability—ideal for riders seeking a composed, versatile Avinox platform without leaning toward an overly aggressive race setup.
SKU: BT5MSXPWDJSGUS1S
Size Guide
Select the frame size that best fits your height and riding style.
S: 5'2"–5'7" |
M: 5'6"–5'10" |
L: 5'9"–6'1"
With its understated full-black build, the META POWER SX AVINOX Signature Pure Black delivers the full capability of the AVINOX system, paired with components chosen for durability, consistency, and everyday ride confidence.
- The RockShox Domain Gold R fork, featuring 38 mm stanchions, offers high stiffness, precise steering, and controlled comfort. The Deluxe Select rear shock is frame-specific tuned to maintain balanced suspension performance across varied terrain.
- The Shimano LinkGlide drivetrain provides smooth, dependable shifting, even under sustained load and high torque.
- DT Swiss H1900 wheels are purpose-built for e-MTB use and hand-built for strength, reliability, and longevity.
- Braking is handled by TRP, combining proven calipers with robust 2.3 mm rotors for consistent, powerful braking performance.
Specifications
-
Frame
META POWER SX AVINOX, 160 mm travel
Mixed wheels (29" front / 27.5" rear). Aluminium 6066 with triple-butted tubes, T4/T6 heat treatment. Sealed bearings. -
Motor
AVINOX drive unit
Peak output up to 120 Nm torque and 1,000 W in boost mode; nominal output up to 105 Nm and 850 W, depending on assist mode and conditions. -
Battery
AVINOX integrated battery
600 Wh (S) / 800 Wh (M, L, XL) -
Display & Controls
AVINOX DP100 touchscreen display
Integrated color touchscreen providing ride data such as speed, assist mode, estimated range, and battery level. Additional connectivity, navigation, and security-related features may be available depending on software version and regional configuration.
AVINOX BD100: On/Off switch, assist level selection, battery status
AVINOX BC100 remote: Mode switch, walk assist, light control -
Rear shock
FOX Float X Factory
230 x 60 mm, 2-position lever (Open/Firm), HSC, LSC, HSR, LSR, volume spacers -
Fork
FOX 36 Factory, 160 mm travel
29", GRIP X2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset -
Headset
ACROS ZS56 / ZS66
Alloy cups, stainless steel sealed bearings -
Stem
RIDE ALPHA 40
40 mm length, 31.8 mm clamp -
Handlebar
RIDE ALPHA handlebars (size-specific)
S: R20, 760 mm width, 20 mm rise, Alloy 6061
M/L: R27, 780 mm width, 27 mm rise, Alloy 6061
XL: R27, 800 mm width, 27 mm rise, Alloy 6061 -
Grips
ODI Longneck V2.1
Soft compound, single clamp, black -
Brakes
SHIMANO XT, 4-piston
Rotors: GALFER Shark, 6-bolt, 203 mm -
Shifter
SRAM AXS Pod
12-speed -
Chain guide
RIDE ALPHA
32–34T compatible -
Rear derailleur
SRAM GX Eagle T-Type
12-speed -
Crankset
e*thirteen HELIX RACE
155 mm crank arms
Chainring: SRAM T-Type, 34T, BCD 104 -
Chain
SRAM GX Eagle T-Type
12-speed, FlatTop -
Cassette
SRAM X0 Eagle T-Type
12-speed, 10–52T -
Wheelset
DT SWISS HX 1700
Front: 29", 28H, 30 mm internal width
Rear: 27.5", 28H, 30 mm internal width -
Hubs
DT SWISS 350 Hybrid
Front: 28H, sealed bearings, 15 x 110 mm
Rear: 28H, sealed bearings, 12 x 148 mm, SRAM XD -
Spokes / Nipples
DT SWISS Hybrid 1
Straightpull, 2.34 / 2.0 mm double-butted stainless steel, ProLock, black -
Tyres
MAXXIS Minion DHR II
Front: 29 x 2.50 WT, 3C MaxxTerra, EXO+, TR
Rear: 27.5 x 2.50 WT, 3C MaxxTerra, EXO+, TR -
Seatpost
OneUp V3 dropper
31.6 mm diameter
S: 150 mm / M: 180 mm / L–XL: 210 mm -
Saddle
WTB Solano
142 x 240 mm, Medium -
Weight
— kg / — lbs
Minimum weight shown for size S without pedals. Weight may vary due to manufacturing tolerances and component specification changes. -
Pedals included
CRANKBROTHERS Stamp 1
-
Colour
Pure Black
Shiny finish -
Accessories
Full RIDEWRAP protective film, motor protector, chainstay protector, seatstay protector, FIDLOCK base, fork fender, CRANKBROTHERS Stamp 1 pedals
Bike specifications are subject to change without notice.
The COMMENCAL META POWER SX AVINOX SIGNATURE PURE BLACK 2026 includes a manufacturer warranty for the original purchaser against eligible manufacturing defects, in accordance with the terms and conditions provided by the brand.
Technical Information
-
Bicycle type
E-bike – Enduro / Freeride
-
Frame material
Aluminium 6066, T6 heat treatment
-
Frame weight
4.795 kg / 10.57 lb
-
Rear travel
160 mm
-
Shock length / stroke
230 x 60 mm
-
Recommended SAG
29–32% (17.5–19 mm)
-
Piggyback shock compatibility
Yes
-
Shock bushings
20 x 10 mm / No bushing required on clevis
-
Recommended / maximum fork height
576 mm / 586 mm
-
Headset type
ZS56 / ZS66
-
ICR compatibility
Yes
-
Wheel size
29" (front) / 27.5" (rear)
-
Maximum rear tyre size (ETRTO)
65 mm – Ø584 mm
-
Rear brake mounting type
Post Mount, 200 mm
-
Maximum rear brake rotor size
223 mm
-
Seatpost / seat clamp diameter
34.9 mm / 38.5 mm
-
Maximum seatpost insertion
S: 180 mm / M: 220 mm / L: 240 mm / XL: 260 mm
-
Motor crankarm interface
AVINOX-specific interface
-
Chain guide
Custom upper chain guide
-
Chain line
55 mm
-
Rear hub spacing
148 x 12 mm (Boost)
-
Rear axle
Maxle standard, 180 mm, M12, P1.0
-
Derailleur hanger
UDH compatible

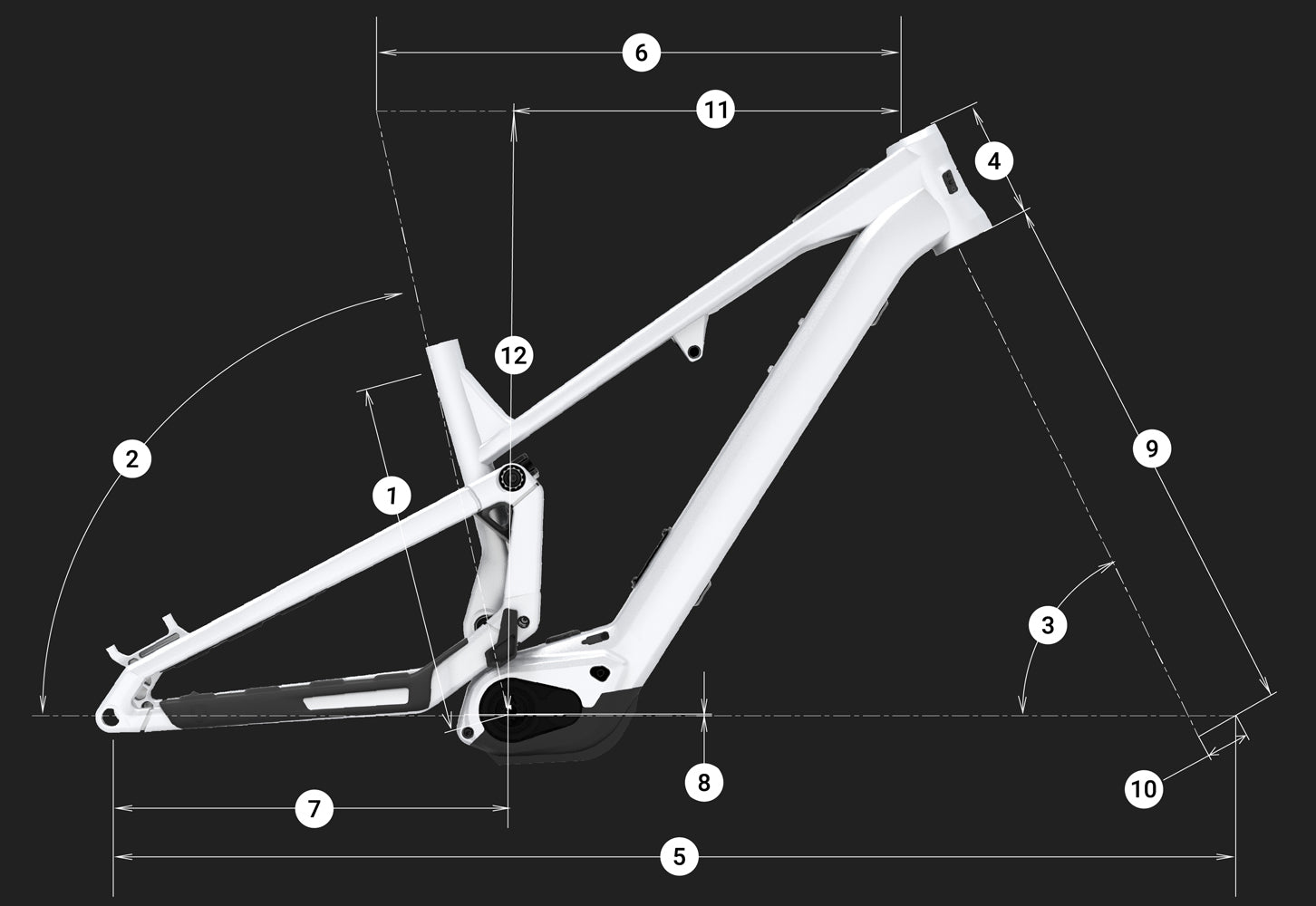

Geometry
All lengths in millimeters.
Size guide
What Size to Choose?
According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.
Between Two Sizes?
When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.
Morphology
Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
