ENDURO
170MM
160MM
29" / 27.5*"
120NM
800WH

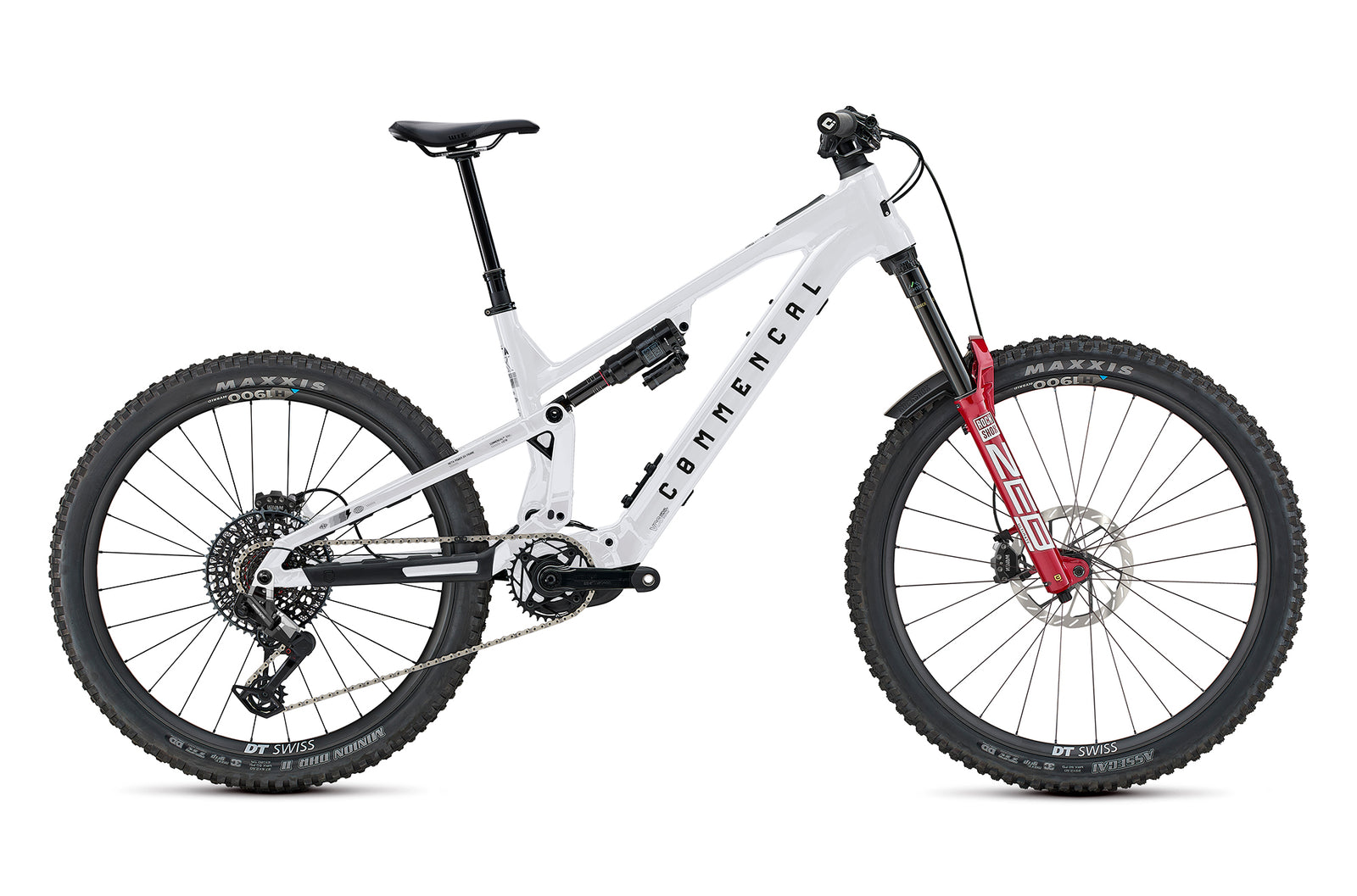

COMMENCAL META POWER SX AVINOX ROCKSHOX PURE WHITE
The COMMENCAL META POWER SX AVINOX ROCKSHOX in Pure White pairs the AVINOX drive system with a lively chassis and balanced handling for longer trail outings with consistent assistance. With 160 mm of rear travel driven by COMMENCAL’s Virtual Contact System (VCS) linkage and a 170 mm fork up front, this build is set up for riders who want extra composure and confidence on steeper, faster terrain while keeping the bike responsive and easy to place on technical lines.
SKU: BT6MSXPWDJRSUS1S
Size Guide
Select the frame size that best fits your height and riding style.
S: 5'2"–5'7" |
M: 5'6"–5'10" |
L: 5'9"–6'1"
The META POWER SX AVINOX ROCKSHOX build is configured for a balanced mix of suspension support, drivetrain precision, and braking control, using components selected for consistent trail performance.
- A RockShox ZEB Ultimate 170 mm fork paired with a RockShox Super Deluxe Select rear shock provides controlled suspension performance and effective terrain filtering.
- The SRAM Eagle 90 T-Type drivetrain is chosen for precise, responsive shifting under load.
- DT SWISS H1900 wheels are designed for e-bike use and are hand-built for durability and reliability.
- Braking is handled by SRAM Maven Base brakes, selected for consistent power delivery and predictable feel across a wide range of riding conditions.
Specifications
-
Frame
META POWER SX AVINOX, 160 mm travel
Mixed wheels (29" front / 27.5" rear). Aluminium 6066 with triple-butted tubes, T4/T6 heat treatment. Sealed bearings. -
Motor
AVINOX drive unit
Peak output up to 120 Nm torque and 1,000 W in boost mode; nominal output up to 105 Nm and 850 W, depending on assist mode and conditions. -
Battery
AVINOX integrated battery
600 Wh (S) / 800 Wh (M, L, XL), fully integrated main battery
Charger: AVINOX fast charger (model as specified) -
Display & Controls
AVINOX DP100 touchscreen display
Integrated color touchscreen display showing ride information such as speed, assist mode, estimated range, and battery level. Additional fitness metrics, sensors, connectivity, navigation, and security-related features may be available depending on software version and regional configuration.
AVINOX BD100: On/Off switch, assist level selection, battery status
AVINOX BC100 remote: Mode switch, walk assist, light control -
Shock
ROCKSHOX Super Deluxe Select
230 x 60 mm, DebonAir+, 2-position lever (Open/Firm), rebound adjustment -
Fork
ROCKSHOX ZEB Ultimate, 170 mm travel
29", Charger 3.2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset -
Headset
ACROS ZS56 / ZS66
Alloy cups, stainless steel sealed bearings -
Stem
RIDE ALPHA 40
40 mm length, 31.8 mm clamp -
Handlebar
RIDE ALPHA handlebars (size-specific)
S: R20, 760 mm width, 20 mm rise, Alloy 6061
M/L: R27, 780 mm width, 27 mm rise, Alloy 6061
XL: R27, 800 mm width, 27 mm rise, Alloy 6061 -
Grips
RIDE ALPHA Mushroom
Soft compound, single clamp, black -
Brakes
SRAM Maven Base, 4-piston
Rotors: SRAM HS2, 6-bolt, 220 mm (front and rear as specified) -
Shifter
SRAM Eagle 90
12-speed -
Chain guide
RIDE ALPHA
32–34T compatible -
Rear derailleur
SRAM Eagle 90, T-Type
12-speed -
Crankset
e*thirteen HELIX CORE
155 mm crank arms
Chainring: SRAM T-Type, 34T -
Chain
SRAM GX T-Type
12-speed -
Cassette
SRAM XS-1270 T-Type
-
Wheelset
DT SWISS H 1900
Front: 29", 28H, 30 mm internal width
Rear: 27.5", 28H, 30 mm internal width -
Hubs
DT SWISS 370 Hybrid
Front: 28H, sealed bearings, 15 x 110 mm
Rear: 28H, sealed bearings, 12 x 148 mm, HG-compatible -
Spokes / Nipples
DT SWISS Hybrid 1
Straightpull, 2.34 / 2.0 mm double-butted stainless steel, ProLock, black -
Tyres
Rear: MAXXIS Minion DHR II / Front: MAXXIS Assegai
Rear: 27.5 x 2.50 WT, 3C MaxxGrip, DoubleDown, TR
Front: 29 x 2.50 WT, 3C MaxxGrip, DoubleDown, TR -
Seatpost
OneUp V3 dropper
31.6 mm diameter
S: 150 mm / M: 180 mm / L–XL: 210 mm -
Saddle
WTB Solano
142 x 240 mm, Medium -
Weight
— kg / — lbs
Minimum weight shown for size S without pedals. Weight may vary due to manufacturing tolerances and component specification changes. -
Pedals included
CRANKBROTHERS Stamp 1
-
Colour
Pure White
Shiny finish -
Accessories
Full RIDEWRAP protective film, motor protector, chainstay protector, seatstay protector, FIDLOCK base, fork fender, CRANKBROTHERS Stamp 1 pedals
Bike specifications are subject to change without notice.
The COMMENCAL META POWER SX AVINOX ROCKSHOX PURE WHITE includes a manufacturer warranty for the original purchaser against eligible manufacturing defects, in accordance with the terms and conditions provided by the brand.
Technical Information
-
Bicycle type
E-bike – Enduro / Freeride
-
Frame material
Aluminium 6066, T6 heat treatment
-
Frame weight
4.795 kg / 10.57 lb
-
Rear travel
160 mm
-
Shock length / stroke
230 x 60 mm
-
Recommended SAG
29–32% (17.5–19 mm)
-
Piggyback shock compatibility
Yes
-
Shock bushings
20 x 10 mm / No bushing required on clevis
-
Recommended / maximum fork height
576 mm / 586 mm
-
Headset type
ZS56 / ZS66
-
ICR compatibility
Yes
-
Wheel size
29" (front) / 27.5" (rear)
-
Maximum rear tyre size (ETRTO)
65 mm – Ø584 mm
-
Rear brake mounting type
Post Mount, 200 mm
-
Maximum rear brake rotor size
223 mm
-
Seatpost / seat clamp diameter
34.9 mm / 38.5 mm
-
Maximum seatpost insertion
S: 180 mm / M: 220 mm / L: 240 mm / XL: 260 mm
-
Motor crankarm interface
AVINOX-specific interface
-
Chain guide
Custom upper chain guide
-
Chain line
55 mm
-
Rear hub spacing
148 x 12 mm (Boost)
-
Rear axle
Maxle standard, 180 mm, M12, P1.0
-
Derailleur hanger
UDH compatible
Geometry
All lengths in millimeters.
Size guide
What Size to Choose?
According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.
Between Two Sizes?
When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.
Morphology
Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
