ENDURO
170MM
160MM
29" / 27.5*"
120NM
800WH

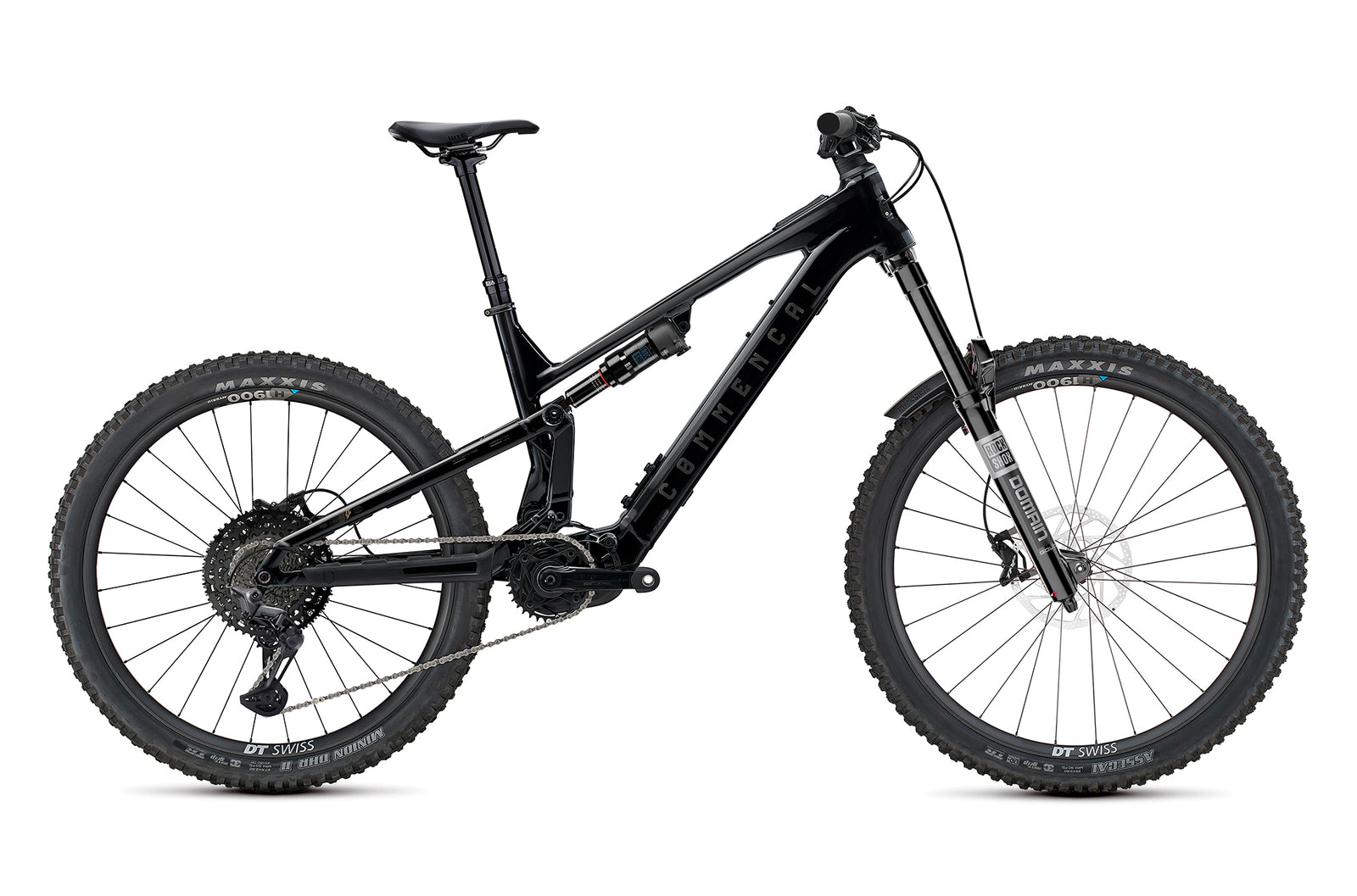

COMMENCAL META POWER SX AVINOX RIDE PURE BLACK 2026
The COMMENCAL META POWER SX AVINOX RIDE combines a supportive drive system with a lively chassis and balanced handling. Designed for riders seeking longer trail outings with consistent motor assistance, it features 160 mm of rear travel and COMMENCAL’s Virtual Contact System (VCS) linkage for predictable suspension behaviour across varied terrain.
A 27.5" rear wheel and well-balanced layout help keep the bike responsive and manoeuvrable, making it easy to place on technical trails. The RIDE build focuses on durability and ease of use, offering a dependable configuration within the META POWER SX AVINOX lineup.
SKU: BT6MSXPWDJRIUS1S
Size Guide
Select the frame size that best fits your height and riding style.
S: 5'2"–5'7" |
M: 5'6"–5'10" |
L: 5'9"–6'1"
With its understated full-black build, the META POWER SX AVINOX RIDE is configured to deliver the full capability of the AVINOX system, paired with components selected for reliability, comfort, and straightforward operation.
- A RockShox Domain Gold R fork with 38 mm stanchions is paired with a RockShox Deluxe Select rear shock, providing a suspension setup focused on control, stiffness, and consistent performance.
- The Shimano LinkGlide drivetrain is chosen for smooth, dependable shifting, particularly under sustained load.
- DT SWISS H1900 wheels are designed for e-bike use and are hand-built for strength, durability, and long-term reliability.
- Braking is handled by TRP brakes, combining proven calipers with robust 2.3 mm rotors for consistent braking performance and predictable feel.
Specifications
-
Frame
META POWER SX AVINOX, 160 mm travel
Mixed wheels (29" front / 27.5" rear). Aluminium 6066 with triple-butted tubes, T4/T6 heat treatment. Sealed bearings. -
Motor
AVINOX drive unit
-
Battery
AVINOX integrated battery
600 Wh (S) / 800 Wh (M, L, XL) -
Display & Controls
AVINOX BD100
Integrated color display providing ride information such as speed, assist mode, estimated range, and battery level. Additional features may vary depending on software version and regional configuration. -
Rear shock
RockShox Deluxe Select
230 x 60 mm, DebonAir+, rebound adjustment -
Fork
RockShox Domain Gold R, 170 mm travel
29", Isolator R damper, rebound adjustment, Boost (15 x 110 mm), 44 mm offset -
Headset
ACROS ZS56 / ZS66
Alloy cups, stainless steel sealed bearings -
Stem
RIDE ALPHA 40
40 mm length, 31.8 mm clamp -
Handlebar
RIDE ALPHA handlebars (size-specific)
S: R27, 760 mm width, 27 mm rise, Alloy 7050
M/L: R35, 780 mm width, 35 mm rise, Alloy 7050
XL: R35, 800 mm width, 35 mm rise, Alloy 7050 -
Grips
RIDE ALPHA Mushroom
Soft compound, single clamp, black -
Brakes
TRP DHR EVO, 4-piston
Rotors: TRP 6-bolt, 220 mm (front) / 203 mm (rear) -
Shifter
Shimano XT LinkGlide
11-speed -
Chain guide
RIDE ALPHA
32–34T compatible -
Rear derailleur
Shimano XT LinkGlide
11-speed -
Crankset
e*thirteen HELIX CORE
155 mm crank arms -
Chain
Shimano CUES LinkGlide
CN-LG500, 11-speed -
Cassette
Shimano CUES LinkGlide
CS-LG400, 11–50T -
Wheelset
DT SWISS H 1900
Front: 29", 28H, 30 mm internal width
Rear: 27.5", 28H, 30 mm internal width -
Hubs
DT SWISS 370 Hybrid
Front: 28H, sealed bearings, 15 x 110 mm
Rear: 28H, sealed bearings, 12 x 148 mm -
Spokes / Nipples
DT SWISS Hybrid 1
Straightpull, double-butted stainless steel, ProLock, black -
Tyres
MAXXIS Minion DHR II (rear) / MAXXIS Assegai (front)
Rear: 27.5 x 2.50 WT, 3C MaxxTerra, EXO+, TR
Front: 29 x 2.50 WT, 3C MaxxTerra, EXO+, TR -
Seatpost
KS 900i
31.6 mm diameter
S: 150 mm / M: 170 mm / L–XL: 190 mm -
Saddle
WTB Solano CroMo
142 x 240 mm, Medium -
Weight
— kg / — lbs
Minimum weight shown for size S without pedals. Weight may vary due to manufacturing tolerances and component specification changes. -
Pedals included
CRANKBROTHERS Stamp 1
-
Colour
Pure Black
Shiny finish -
Accessories
Full RIDEWRAP protective film, motor protector, chainstay protector, seatstay protector, FIDLOCK base, fork fender, CRANKBROTHERS Stamp 1 pedals
Bike specifications are subject to change without notice.
The COMMENCAL META POWER SX AVINOX RIDE PURE BLACK 2026 includes a manufacturer warranty for the original purchaser against eligible manufacturing defects, in accordance with the terms and conditions provided by the brand.
Technical Information
-
Bicycle type
E-bike – Enduro / Freeride
-
Frame material
Aluminium 6066, T6 heat treatment
-
Frame weight
4.795 kg / 10.57 lb
-
Rear travel
160 mm
-
Shock length / stroke
230 x 60 mm
-
Recommended SAG
29–32% (17.5–19 mm)
-
Piggyback shock compatibility
Yes
-
Shock bushings
20 x 10 mm / No bushing required on clevis
-
Recommended / maximum fork height
576 mm / 586 mm
-
Headset type
ZS56 / ZS66
-
ICR compatibility
Yes
-
Wheel size
29" (front) / 27.5" (rear)
-
Maximum rear tyre size (ETRTO)
65 mm – Ø584 mm
-
Rear brake mounting type
Post Mount, 200 mm
-
Maximum rear brake rotor size
223 mm
-
Seatpost / seat clamp diameter
34.9 mm / 38.5 mm
-
Maximum seatpost insertion
S: 180 mm / M: 220 mm / L: 240 mm / XL: 260 mm
-
Motor crankarm interface
AVINOX-specific interface
-
Chain guide
Custom upper chain guide
-
Chain line
55 mm
-
Rear hub spacing
148 x 12 mm (Boost)
-
Rear axle
Maxle standard, 180 mm, M12, P1.0
-
Derailleur hanger
UDH compatible
Geometry
All lengths in millimeters.
Size guide
What Size to Choose?
According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.
Between Two Sizes?
When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.
Morphology
Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
